RFA-N-SMARF AdaptersShengfeng Hydrowave
N to SMA Adapters
DC–18 GHz · 50 Ω · 10 part numbers
Precision N-to-SMA RF adapters from Shengfeng Hydrowave, available in Israel through Koto Electronics. 10 part numbers (straight) for 50 Ω systems, DC–18 GHz. Order by the manufacturer part number shown in the table below.
DC–18 GHz
Frequency Range
50 Ω
Impedance
10
Part Numbers
Key Features
DC–18 GHz, 50 Ω precision adapters
Max. VSWR 1.15 and max. insertion loss 0.17 dB, depending on style
SUS303 stainless steel, passivated; contact pin: BeCu, gold-plated
PEI/PTFE insulator, MIL-STD-348 interface
Over 500 mating cycles; −55 °C to +165 °C operating range
10 part numbers: straight
Part Numbers (10)

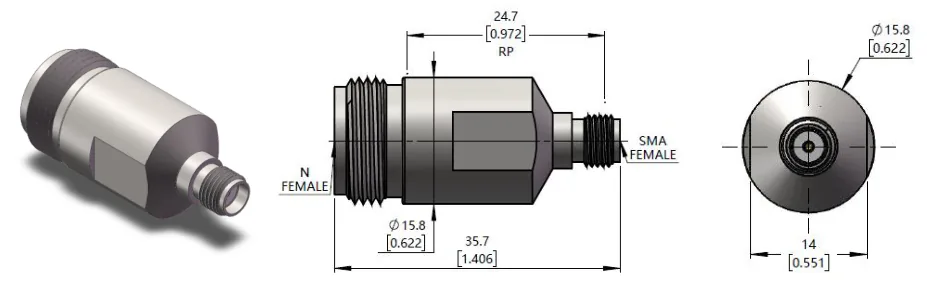

- SFHW12-00-008N FemaleSMA FemaleVariant 1 of 4
- Max. VSWR
- ≤ 1.15
- Max. insertion loss
- ≤ 0.17 dB
- Catalog page
- 6

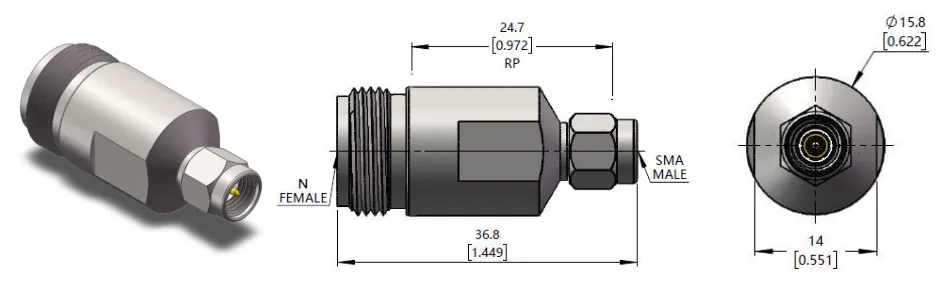

- SFHW12-00-009N FemaleSMA MaleVariant 1 of 2
- Max. VSWR
- ≤ 1.15
- Max. insertion loss
- ≤ 0.17 dB
- Catalog page
- 6

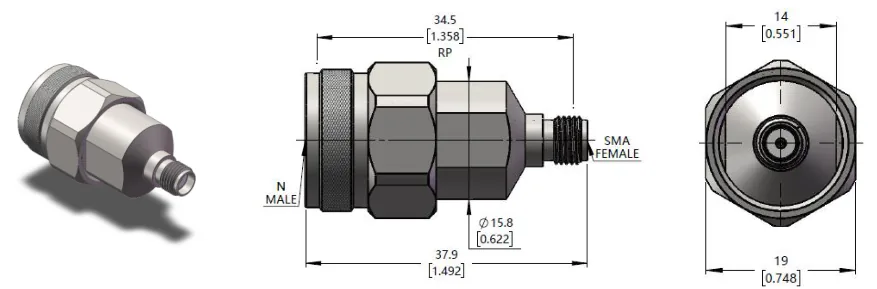

- SFHW12-00-010N MaleSMA FemaleVariant 1 of 2
- Max. VSWR
- ≤ 1.15
- Max. insertion loss
- ≤ 0.17 dB
- Catalog page
- 6

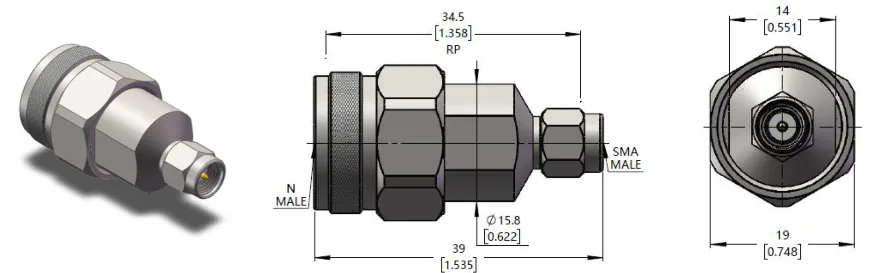

- SFHW12-00-011N MaleSMA MaleVariant 1 of 2
- Max. VSWR
- ≤ 1.15
- Max. insertion loss
- ≤ 0.17 dB
- Catalog page
- 6

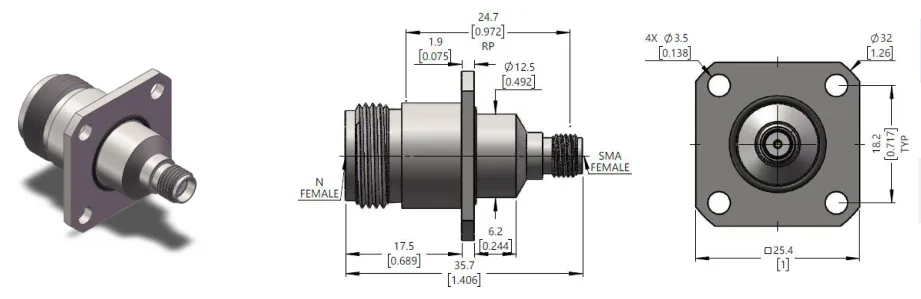

- SFHW12-00-012N FemaleSMA FemaleVariant 2 of 4
- Max. VSWR
- ≤ 1.15
- Max. insertion loss
- ≤ 0.17 dB
- Catalog page
- 6

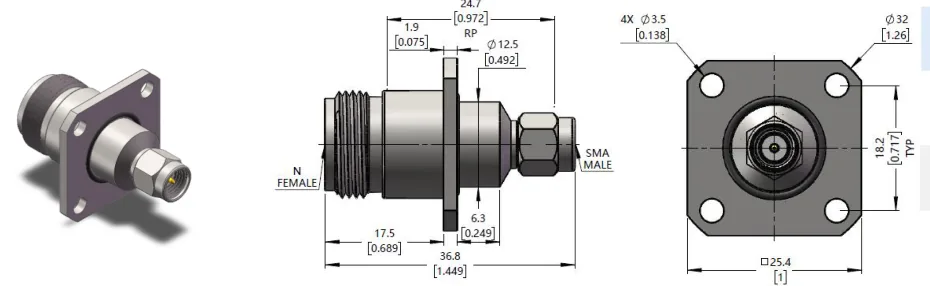

- SFHW12-00-013N FemaleSMA MaleVariant 2 of 2
- Max. VSWR
- ≤ 1.15
- Max. insertion loss
- ≤ 0.17 dB
- Catalog page
- 7

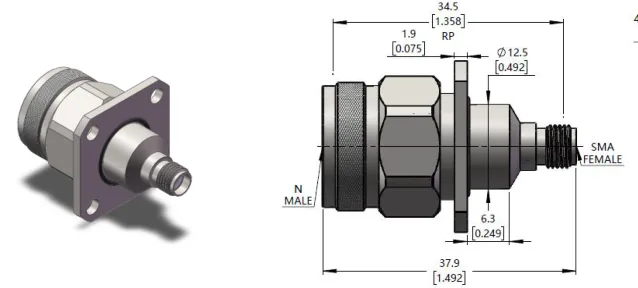

- SFHW12-00-014N MaleSMA FemaleVariant 2 of 2
- Max. VSWR
- ≤ 1.15
- Max. insertion loss
- ≤ 0.17 dB
- Catalog page
- 7

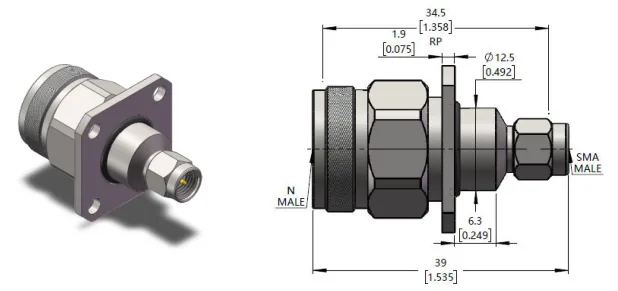

- SFHW12-00-015N MaleSMA MaleVariant 2 of 2
- Max. VSWR
- ≤ 1.15
- Max. insertion loss
- ≤ 0.17 dB
- Catalog page
- 7

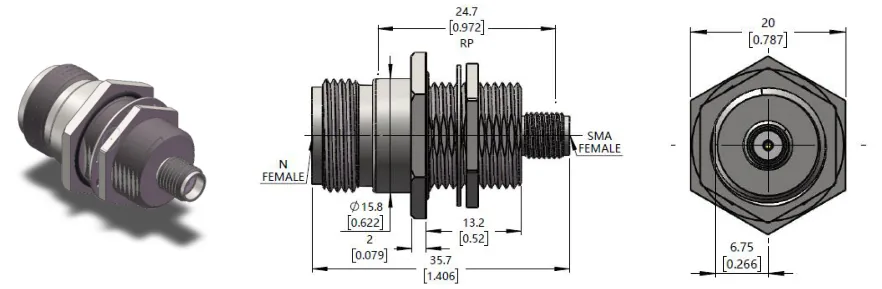

- SFHW12-00-016N FemaleSMA FemaleVariant 3 of 4
- Max. VSWR
- ≤ 1.15
- Max. insertion loss
- ≤ 0.17 dB
- Catalog page
- 7

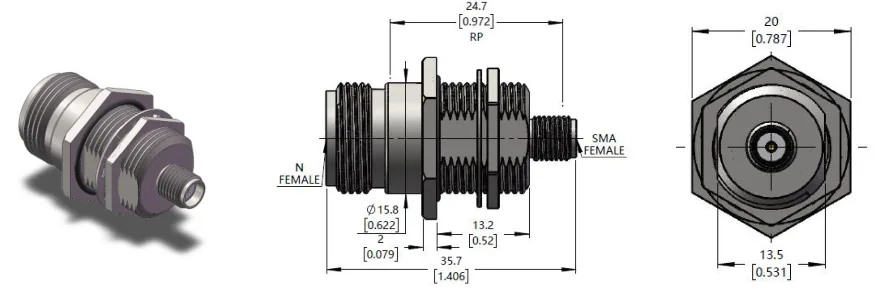

- SFHW12-00-017N FemaleSMA FemaleVariant 4 of 4
- Max. VSWR
- ≤ 1.15
- Max. insertion loss
- ≤ 0.17 dB
- Catalog page
- 7
Maximum values from the manufacturer's data. Contact Koto Electronics for stock and pricing.
Applications
Converting between N and SMA connector interfaces on instruments, cables and test fixturesTest and measurement benches, production test and system integration
Specifications
Frequency Range
DC–18 GHz
Impedance
50 Ω
Part Numbers
10
Max. VSWR
1.15
Max. Insertion Loss
0.17 dB
Interface Standard
MIL-STD-348
Insulator
PEI/PTFE
Body
SUS303 stainless steel, passivated
Contact Pin
BeCu, gold-plated
Durability
Over 500 mating cycles
Operating Temperature
−55 °C to +165 °C
Configurations
Straight
