N Adapters

DC–18 GHz · 50 Ω · 7 part numbers

Precision N RF adapters from Shengfeng Hydrowave, available in Israel through Koto Electronics. 7 part numbers (straight, flange-mount, bulkhead) for 50 Ω systems, DC–18 GHz. Order by the manufacturer part number shown in the table below.

⁦DC–18 GHz⁩

Frequency Range

⁦50 Ω⁩

Impedance

⁦7⁩

Part Numbers

Request a Quote

Key Features

⁦DC–18 GHz, 50 Ω precision adapters⁩

⁦Max. VSWR 1.15 and max. insertion loss 0.17 dB, depending on style⁩

⁦SUS303 stainless steel, passivated; contact pin: BeCu, gold-plated⁩

⁦PEI insulator, MIL-STD-348 interface⁩

⁦Over 500 mating cycles; −55 °C to +165 °C operating range⁩

⁦7 part numbers: straight, flange-mount, bulkhead⁩

Part Numbers (7)

Straight

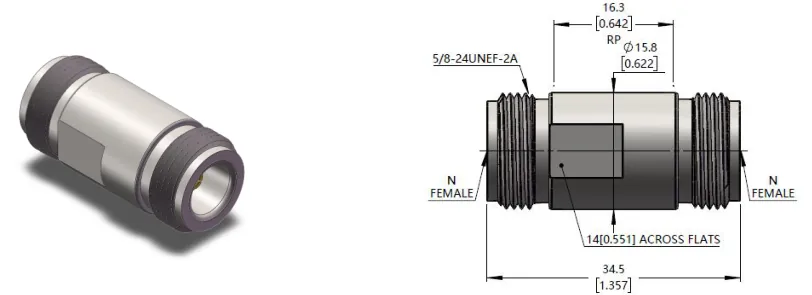

SFHW12-00-001
N FemaleN Female
Max. VSWR
≤ 1.15
Max. insertion loss
≤ 0.17 dB
Catalog page
3
Product Side view

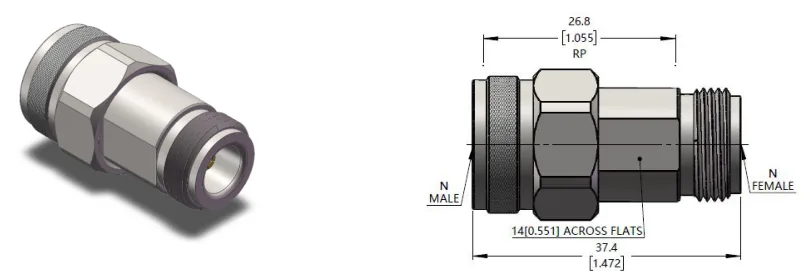

SFHW12-00-002
N MaleN Female
Max. VSWR
≤ 1.15
Max. insertion loss
≤ 0.17 dB
Catalog page
3
Product Side view

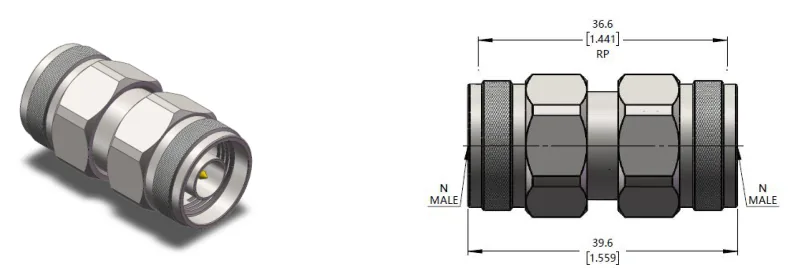

SFHW12-00-003
N MaleN Male
Max. VSWR
≤ 1.15
Max. insertion loss
≤ 0.17 dB
Catalog page
3
Product Side view

Flange mount

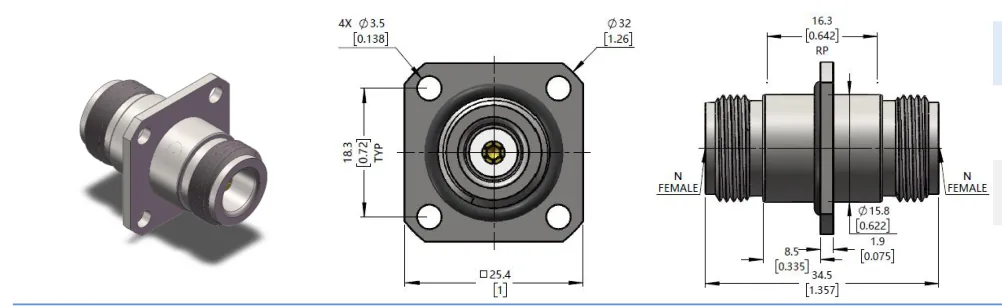

SFHW12-00-004
N FemaleN Female
Max. VSWR
≤ 1.15
Max. insertion loss
≤ 0.17 dB
Catalog page
4
Product Front view Side view

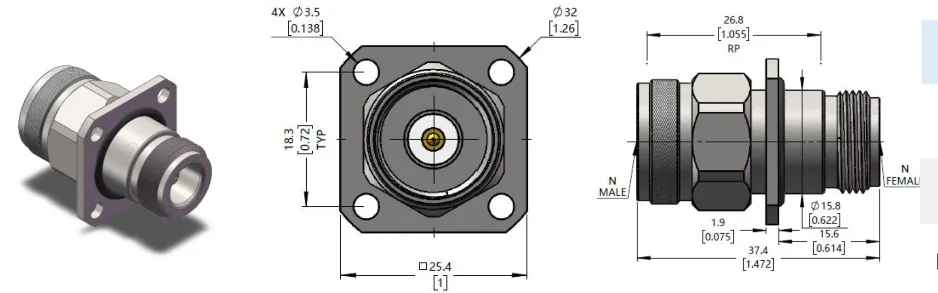

SFHW12-00-005
N MaleN Female
Max. VSWR
≤ 1.15
Max. insertion loss
≤ 0.17 dB
Catalog page
4
Product Front view Side view

Bulkhead

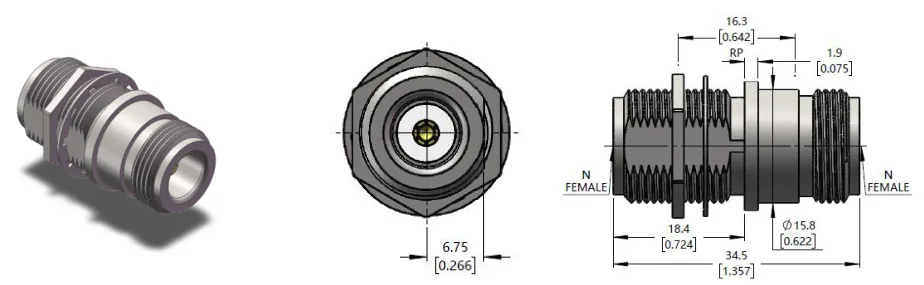

SFHW12-00-006
N FemaleN Female
Variant 1 of 2
Max. VSWR
≤ 1.15
Max. insertion loss
≤ 0.17 dB
Catalog page
5
Product Front view Side view

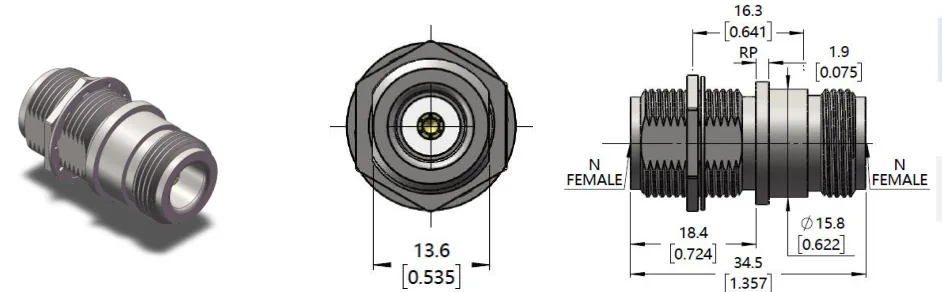

SFHW12-00-007
N FemaleN Female
Variant 2 of 2
Max. VSWR
≤ 1.15
Max. insertion loss
≤ 0.17 dB
Catalog page
5
Product Front view Side view

Maximum values from the manufacturer's data. Contact Koto Electronics for stock and pricing.

Applications

⁦Adding gender or interface changes to N test setups and cable runs⁩⁦Test and measurement benches, production test and system integration⁩⁦Bulkhead feed-through for enclosures and rack panels⁩⁦Flange-mounted panel and fixture connections⁩
