RFA-N-35RF AdaptersShengfeng Hydrowave
N to 3.5mm Adapters
DC–18 GHz · 50 Ω · 4 part numbers
Precision N-to-3.5mm RF adapters from Shengfeng Hydrowave, available in Israel through Koto Electronics. 4 part numbers (straight) for 50 Ω systems, DC–18 GHz. Order by the manufacturer part number shown in the table below.
DC–18 GHz
Frequency Range
50 Ω
Impedance
4
Part Numbers
Key Features
DC–18 GHz, 50 Ω precision adapters
Max. VSWR 1.15 and max. insertion loss 0.17 dB, depending on style
SUS303 stainless steel, passivated; contact pin: BeCu, gold-plated
PEI insulator, MIL-STD-348 interface
Over 500 mating cycles; −55 °C to +165 °C operating range
4 part numbers: straight
Part Numbers (4)
| Part No. | Connector A | Connector B | Max. VSWR | Max. insertion loss | Catalog page | Drawing |
|---|---|---|---|---|---|---|

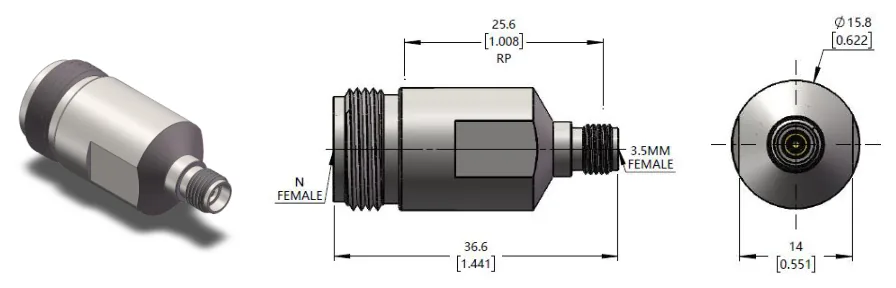

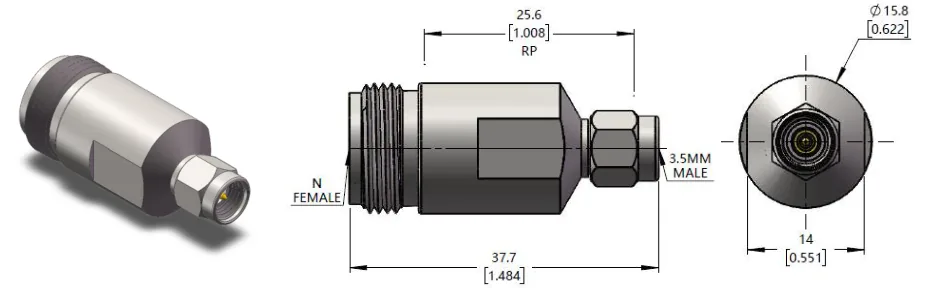

| SFHW12-00-018 | N Female | 3.5mm FemaleVariant 1 of 4 | ≤ 1.15 | ≤ 0.17 dB | 8 | Drawing |
| SFHW12-00-019 | N Female | 3.5mm FemaleVariant 2 of 4 | ≤ 1.15 | ≤ 0.17 dB | 8 | Drawing |
| SFHW12-00-020 | N Female | 3.5mm FemaleVariant 3 of 4 | ≤ 1.15 | ≤ 0.17 dB | 8 | Drawing |
| SFHW12-00-021 | N Female | 3.5mm FemaleVariant 4 of 4 | ≤ 1.15 | ≤ 0.17 dB | 8 | Drawing |
Maximum values from the manufacturer's data. Contact Koto Electronics for stock, pricing and drawings.
Applications
Converting between N and 3.5mm connector interfaces on instruments, cables and test fixturesTest and measurement benches, production test and system integration
Specifications
Frequency Range
DC–18 GHz
Impedance
50 Ω
Part Numbers
4
Max. VSWR
1.15
Max. Insertion Loss
0.17 dB
Interface Standard
MIL-STD-348
Insulator
PEI
Body
SUS303 stainless steel, passivated
Contact Pin
BeCu, gold-plated
Durability
Over 500 mating cycles
Operating Temperature
−55 °C to +165 °C
Configurations
Straight
