RFA-35-24RF AdaptersShengfeng Hydrowave
3.5mm to 2.4mm Adapters
DC–33 GHz · 50 Ω · 4 part numbers
Precision 3.5mm-to-2.4mm RF adapters from Shengfeng Hydrowave, available in Israel through Koto Electronics. 4 part numbers (straight) for 50 Ω systems, DC–33 GHz. Order by the manufacturer part number shown in the table below.
DC–33 GHz
Frequency Range
50 Ω
Impedance
4
Part Numbers
Key Features
DC–33 GHz, 50 Ω precision adapters
Max. VSWR 1.15 and max. insertion loss 0.25 dB, depending on style
SUS303 stainless steel, passivated; contact pin: BeCu, gold-plated
PEI insulator, IEC 61169 interface
Over 500 mating cycles; −55 °C to +165 °C operating range
4 part numbers: straight
Part Numbers (4)
| Part No. | Connector A | Connector B | Max. VSWR | Max. insertion loss | Catalog page | Drawing |
|---|---|---|---|---|---|---|

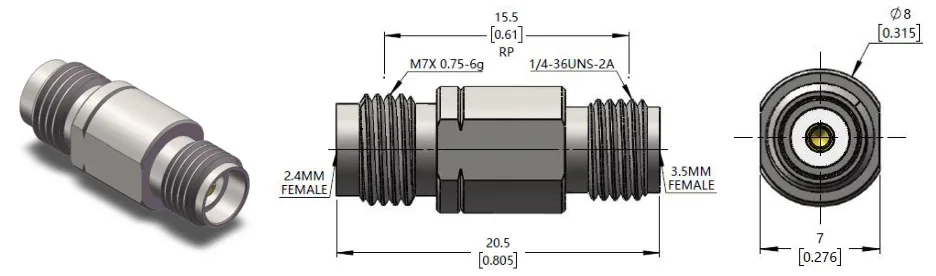

| SFHW12-00-072 | 3.5mm Female | 2.4mm Female | ≤ 1.15 | ≤ 0.25 dB | 24 | Drawing |

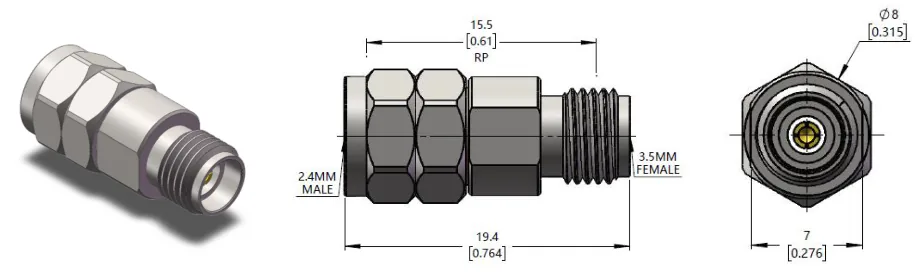

| SFHW12-00-073 | 3.5mm Female | 2.4mm Male | ≤ 1.15 | ≤ 0.25 dB | 24 | Drawing |

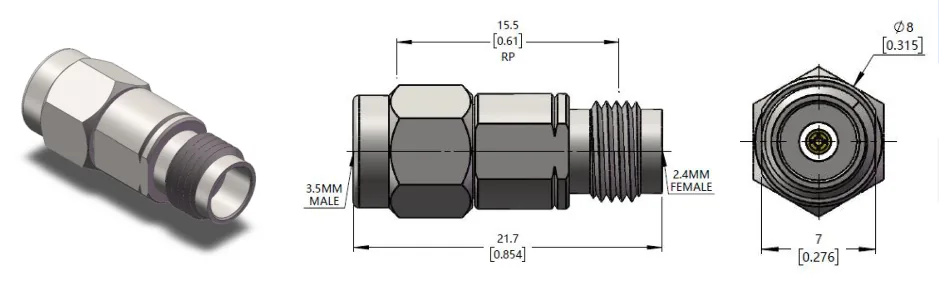

| SFHW12-00-074 | 3.5mm Male | 2.4mm FemaleVariant 1 of 2 | ≤ 1.15 | ≤ 0.25 dB | 24 | Drawing |

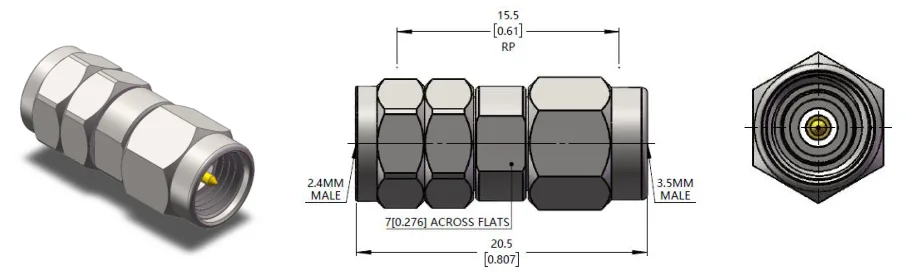

| SFHW12-00-075 | 3.5mm Male | 2.4mm FemaleVariant 2 of 2 | ≤ 1.15 | ≤ 0.25 dB | 24 | Drawing |
Maximum values from the manufacturer's data. Contact Koto Electronics for stock, pricing and drawings.
Applications
Converting between 3.5mm and 2.4mm connector interfaces on instruments, cables and test fixturesTest and measurement benches, production test and system integration
Specifications
Frequency Range
DC–33 GHz
Impedance
50 Ω
Part Numbers
4
Max. VSWR
1.15
Max. Insertion Loss
0.25 dB
Interface Standard
IEC 61169
Insulator
PEI
Body
SUS303 stainless steel, passivated
Contact Pin
BeCu, gold-plated
Durability
Over 500 mating cycles
Operating Temperature
−55 °C to +165 °C
Configurations
Straight
