RFA-24-SMARF AdaptersShengfeng Hydrowave
2.4mm to SMA Adapters
DC–27 GHz · 50 Ω · 4 part numbers
Precision 2.4mm-to-SMA RF adapters from Shengfeng Hydrowave, available in Israel through Koto Electronics. 4 part numbers (straight) for 50 Ω systems, DC–27 GHz. Order by the manufacturer part number shown in the table below.
DC–27 GHz
Frequency Range
50 Ω
Impedance
4
Part Numbers
Key Features
DC–27 GHz, 50 Ω precision adapters
Max. VSWR 1.15 and max. insertion loss 0.25 dB, depending on style
SUS303 stainless steel, passivated; contact pin: BeCu, gold-plated
PEI/PTFE insulator, IEC 61169 interface
Over 500 mating cycles; −55 °C to +165 °C operating range
4 part numbers: straight
Part Numbers (4)
| Part No. | Connector A | Connector B | Max. VSWR | Max. insertion loss | Catalog page | Drawing |
|---|---|---|---|---|---|---|

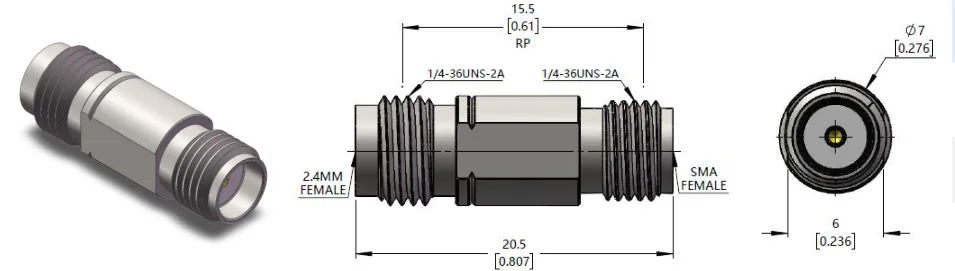

| SFHW12-00-130 | 2.4mm Female | SMA Female | ≤ 1.15 | ≤ 0.25 dB | 39 | Drawing |
| SFHW12-00-131 | 2.4mm Female | SMA Male | ≤ 1.15 | ≤ 0.25 dB | 39 | Drawing |

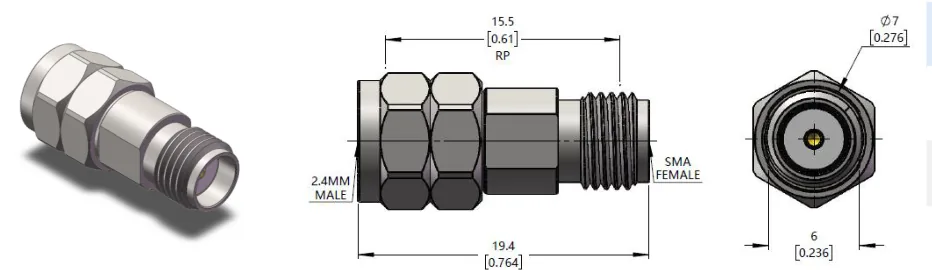

| SFHW12-00-132 | 2.4mm Male | SMA Female | ≤ 1.15 | ≤ 0.25 dB | 39 | Drawing |

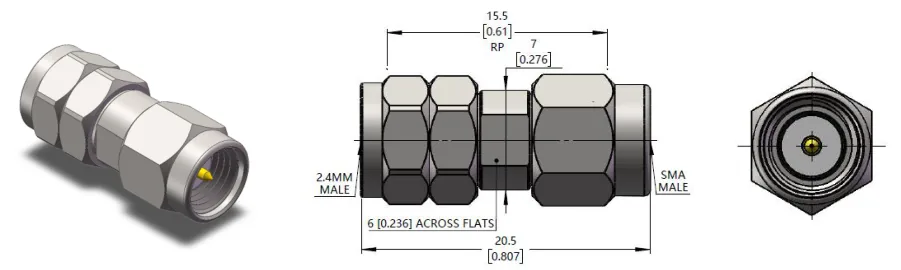

| SFHW12-00-133 | 2.4mm Male | SMA Male | ≤ 1.15 | ≤ 0.25 dB | 39 | Drawing |
Maximum values from the manufacturer's data. Contact Koto Electronics for stock, pricing and drawings.
Applications
Converting between 2.4mm and SMA connector interfaces on instruments, cables and test fixturesTest and measurement benches, production test and system integration
Specifications
Frequency Range
DC–27 GHz
Impedance
50 Ω
Part Numbers
4
Max. VSWR
1.15
Max. Insertion Loss
0.25 dB
Interface Standard
IEC 61169
Insulator
PEI/PTFE
Body
SUS303 stainless steel, passivated
Contact Pin
BeCu, gold-plated
Durability
Over 500 mating cycles
Operating Temperature
−55 °C to +165 °C
Configurations
Straight
