ITF-02 · Fluid Transfer Tubing

Polyurethane Tubing
Six Grades. One Right Answer for Your Circuit.

Junkosha's polyurethane tubing family covers the full performance spectrum — from ultra-soft general routing to low-friction cable carrier tubing, water-resistant grades, and static-dissipative variants for ESD-sensitive pneumatic systems.

Request a Quote Download Catalog

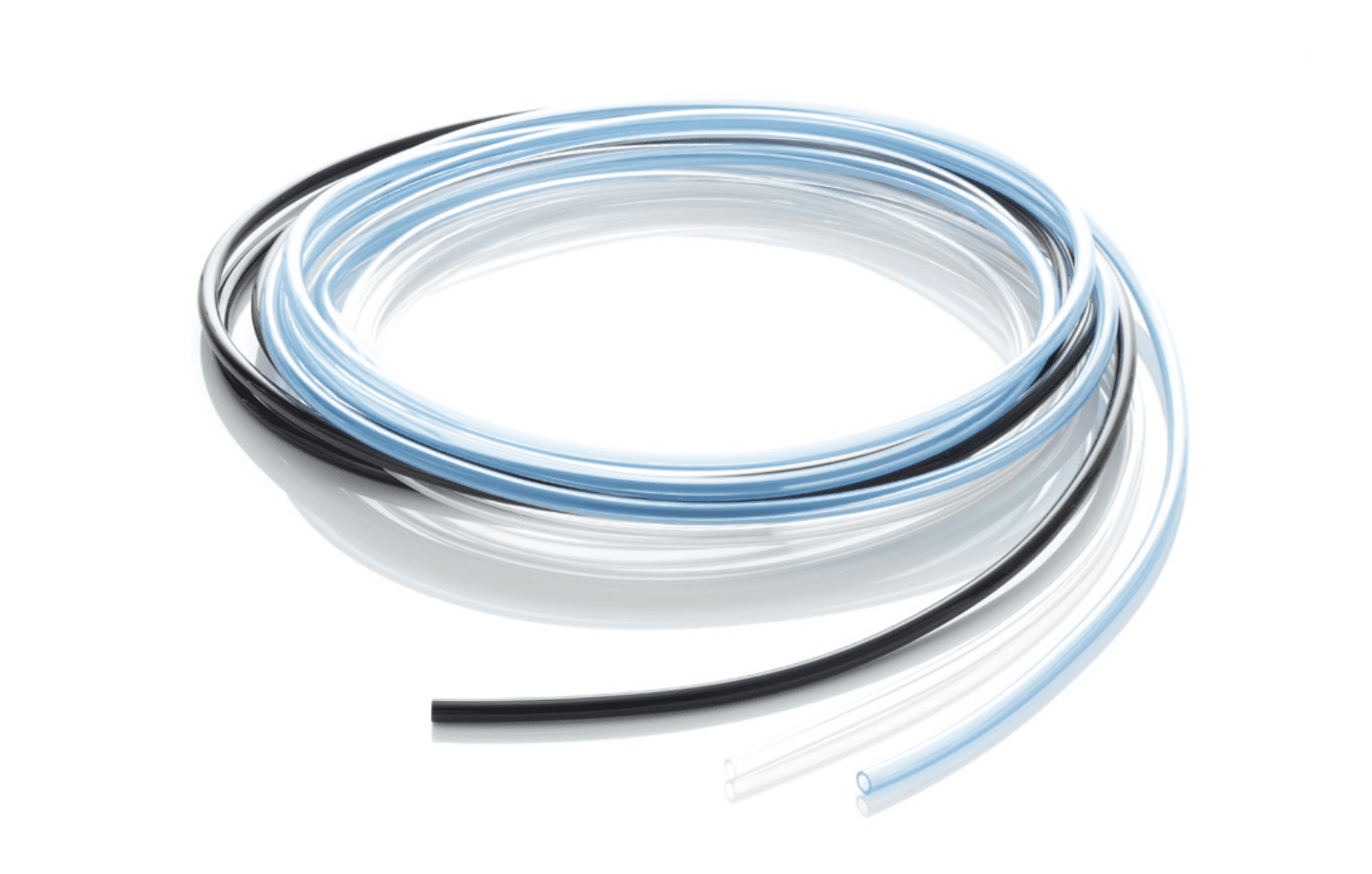

Junkosha ITF-02 Polyurethane Tubing

Tubing Specified by Flexibility Alone Fails When the Application Asks for More

Most polyurethane tubing is selected by a single criterion: soft or hard. In practice, a standard soft PU tube accumulates static charge in a semiconductor fab, absorbs water from the ambient air in a painting robot, or generates squealing noise in a cable carrier after six months of operation. These failures are predictable — and they are all solved by grade selection, not replacement.

Junkosha provides six distinct PU grades — each optimized for a specific failure mode — so the right tube is specified before installation, not after the first service call.

Family-Wide Properties

Abrasion Resistance
Superior — key advantage over nylon in moving applications
Temperature Range
Resin no-load continuous: −40°C to +80°C
Resilience
Highly elastic — returns to round cross-section after compression
Elution
No hazardous substance elution — RoHS compliant
Bending Radius
Smaller bend radii than nylon at equivalent OD
Static Grades
UE and UC grades provide semiconducting volume resistivity

Product Families

Select by flexibility, moisture resistance, friction, or ESD requirement.

USExtra Soft
Extremely Soft Polyurethane Tubing
Softest grade — Shore A ~60. Ultra-flexible routing for tight spaces. Max 0.3 MPa.
Temp: -20 to +60°C
Pressure: <0.3 MPa
Sizes: 4–12 mm OD
Colors: Yellow-Brown, Black
UHStandard
Soft Polyurethane Tubing
Standard flexible grade. Excellent rebound elasticity, good abrasion resistance. Max 0.7 MPa.
Temp: -20 to +60°C
Pressure: <0.7 MPa
Sizes: 4–12 mm OD
Colors: Black, Clear, Red, Blue, Yellow, Green, White
UFWater Resistant
Water Resistant Soft Polyurethane Tubing
Enhanced moisture resistance for mixed air/water circuits. Micro tubing available from 1.6 mm OD.
Temp: Air: −20 to +60°C | Water: 0 to +50°C
Pressure: Up to 0.6 MPa (standard) | 0.9 MPa (micro)
Sizes: 1.6–12 mm OD (including UF-M micro series)
Colors: Black, Blue, Clear, Red, Yellow, Green, White

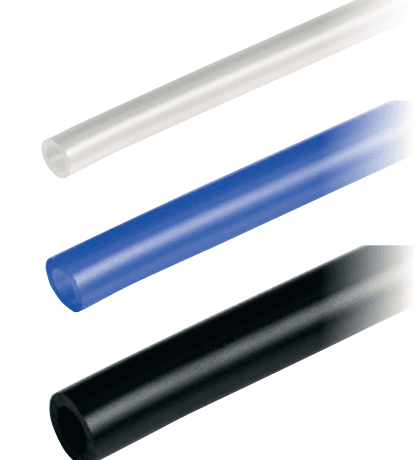

UFLLow Friction
Low Friction Polyurethane Tubing
Grain-finish surface reduces sliding friction to 1/10 of standard UF — eliminates cable carrier wear noise.
Temp: -20 to +60°C
Pressure: <0.6 MPa
Sizes: 4–12 mm OD
Colors: Black, Blue, Milky-White
UEAnti-Static
Semi-Conductive Polyurethane Tubing
Volume resistivity in the semiconducting range — prevents static charge buildup in pneumatic systems.
Temp: -20 to +60°C
Pressure: <0.6 MPa
Sizes: 4–12 mm OD
Colors: Black
UCTransparent + Anti-Static
Semi-Conductive Transparent Polyurethane Tubing
Clear body for visual flow inspection plus static dissipation. Ideal for clean-environment fluid transfer.
Temp: -20 to +60°C
Pressure: <0.6 MPa
Sizes: 4–12 mm OD
Colors: Clear

Representative Part Numbers

Burst and operating pressure at 23°C using air. Full tables in catalog.

Part No.TypeOD × IDBurst (23°C)Max Op. PressureMin Bend
15-04US4 × 2.5 mm1.4 MPa<0.3 MPa10 mm
15-06US6 × 4 mm1.2 MPa<0.3 MPa14 mm
15-08US8 × 5 mm1.4 MPa<0.3 MPa17 mm
30-04UH4 × 2.5 mm2.9 MPa<0.7 MPa10 mm
30-06UH6 × 4 mm2.7 MPa<0.7 MPa14 mm
30-08UH8 × 5 mm2.9 MPa<0.7 MPa16 mm
25-04UF4 × 2.5 mm2.7 MPa<0.6 MPa10 mm
25-06UF6 × 4 mm2.3 MPa<0.6 MPa14 mm
25L-04UFL4 × 2.5 mm2.7 MPa<0.6 MPa10 mm
25L-06UFL6 × 4 mm2.3 MPa<0.6 MPa14 mm
30E-04UE4 × 2.5 mm2.4 MPa<0.6 MPa10 mm
25C-04UC4 × 2.5 mm2.7 MPa<0.6 MPa10 mm

UF micro tubing (UF-M016 to UF-M035, 1.6–3.5 mm OD) also available — see catalog.

Applications

Pneumatic equipment & actuatorsFluidic element circuitsChemical plant pneumatic linesPainting & coating robotsCable carriers (UFL low-friction grade)Semiconductor fab pneumatics (UE / UC anti-static)High-density space-saving piping (UFL)Water-contact circuits (UF grade)Automation & assembly equipmentInsulating fluid transfer in clean environments (UC)

Request a Quote

Specify OD, wall, grade (US/UH/UF/UFL/UE/UC), and length — Koto will respond within one business day.

Contact Us

Download Full Catalog

Complete specification tables, standard length and color availability, and pressure-temperature curves.

Junkosha-ITFBE.pdf
