ITF-01 · Fluid Transfer Tubing

Nylon Tubing
Built for Pressure, Heat & Motion

The AS/AC/AT nylon tubing family covers every pneumatic and hydraulic routing scenario — from soft flexible runs to high-pressure rigid lines and multi-core control bundles. RoHS compliant. Metric and inch sizes. Continuous service from −40°C to +93°C.

Request a Quote Download Catalog

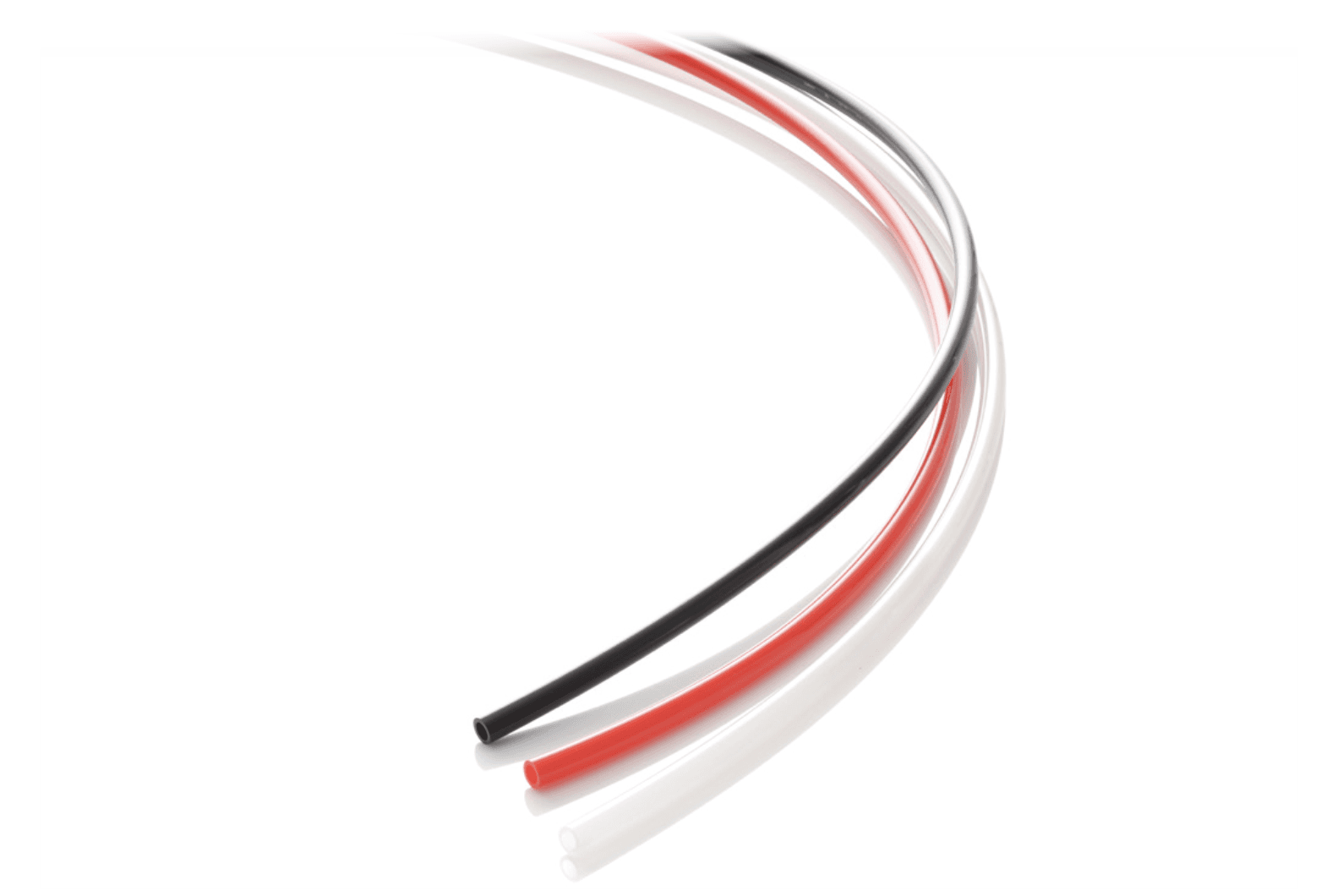

Junkosha ITF-01 Nylon Tubing in black, red, and milky-white

The Wrong Nylon Grade Fails Before the Application Does

General-purpose nylon tubing is sold as a commodity — one grade covers everything. In practice, a tube rated for air service at room temperature fails at 60°C, bursts at surge pressure, or cracks when routed too tightly around a robot joint. The failure always looks like a system problem. The cause is usually a material mismatch that could have been avoided.

Junkosha's nylon tubing family provides the right material for each condition: a standard soft grade for general pneumatic runs, a high-pressure grade for elevated duty, an ultra-soft grade for moving parts, and multi-core bundles for centralized control — all RoHS compliant, all available in standard colors for visual circuit identification.

Key Properties

Mechanical Strength
Superior pressure resistance, abrasion resistance, and bending fatigue resistance
Temperature Range
Resin no-load continuous operation: −40°C to +93°C
Flexibility
Three hardness grades from extremely soft (AS4) to high-pressure rigid (AS2)
Chemical Resistance
Excellent oil and alkali resistance — no hazardous substance elution
Standard Compliance
AS1 and AS4 variants comply with JIS B8381; RoHS compliant
Available Sizes
4–16 mm OD metric | 1/8"–1/2" inch series | multi-core 1–12 tubes | coil 6–15 mm

Product Families

Six nylon tubing types — select by pressure rating, flexibility, and format.

AS1Standard
Soft Nylon Tubing
Standard grade — highest pressure rating in the nylon range. Metric and inch sizes.
Temp: -20 to +70°C (air)
Pressure: Up to 1.4 MPa (metric) / 1.7 MPa (inch)
Sizes: 4–16 mm OD (metric) | 1/8"–1/2" (inch)
Colors: Black, Milky-White, Red, Blue, Yellow, Green
AS2High Pressure
High Pressure Resistant Nylon Tubing
Thicker wall for elevated pressure service. Up to 17.6 MPa burst — nearly triple AS1.
Temp: -20 to +80°C (air)
Pressure: Up to 17.6 MPa burst | <2.6–<4.4 MPa operating
Sizes: 4–12 mm OD
Colors: Milky-White
AS4Ultra-Flexible
Extremely Soft Nylon Tubing
Lowest Shore D hardness — maximum flexibility for moving parts and space-constrained routing.
Temp: -20 to +60°C (air)
Pressure: Up to 1.2 MPa
Sizes: 4–12 mm OD
Colors: Black, Milky-White, Red, Blue, Yellow, Green
AC1 / AC2Multi-Line
Multi-Core Control Tubing
Up to 12 individually colored nylon cores in a single PVC jacket — ideal for multi-axis pneumatic control.
Temp: -20 to +70°C (air)
Pressure: Up to 2.1 MPa
Sizes: 1–12 cores, 6×4 or 8×6 mm core OD×ID
Colors: Black PVC jacket, color-coded cores
AT1Coil Format
Soft Nylon Coil Tubing
Spring-return coil format for air tools and tethered equipment. Extends to 20 m, retracts to under 1 m.
Temp: -20 to +70°C (air)
Pressure: Up to 1.2 MPa
Sizes: 6×7.5–20 m, 9×7.5–20 m, 12×7.5–20 m — OD × coil length
Colors: Orange
AT4Soft Coil
Extremely Soft Nylon Coil Tubing
Coil format version of AS4 — softest nylon for delicate tethered instruments.
Temp: -20 to +60°C (air)
Pressure: Up to 1.2 MPa
Sizes: 4–10 mm tube OD, 10 m coil length
Colors: Black

Product Gallery

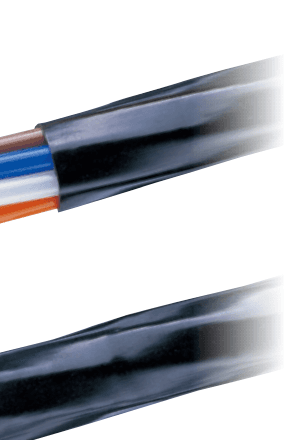

Cross-section of AC1 multi-core control tubing
AC1 — Multi-Core Construction

Up to 12 individually colored nylon cores bundled inside a single PVC jacket for centralized pneumatic control.

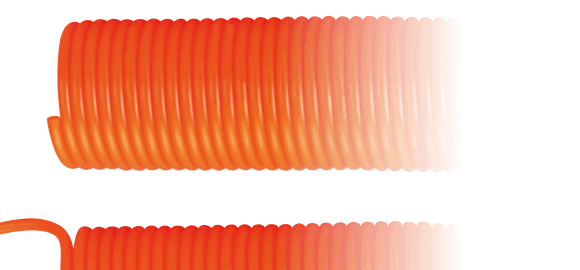

AT1 orange soft nylon coil tubing
AT1 — Coil Format

Spring-return tubing for air tools and tethered equipment — extends to 20 m, retracts to under 1 m.

All Part Numbers

Complete specification tables for every Junkosha nylon series, taken directly from the Junkosha-ITFAE catalog.

AS1 Soft Nylon Tubing — Metric

Standard colors: Black, Milky-White (plus Red, Blue, Yellow, Green for select 20 m rolls).

Part No.O.D. × I.D. (mm)Burst Pressure 23°CMax. Op. Pressure 23°CMin. Bend Radius (mm)Standard Length (m)
70-044 × 36.1 MPa<1.4 MPa1720 · 100
70-066 × 4.56.1 MPa<1.4 MPa2420 · 100
70-088 × 66.1 MPa<1.4 MPa3320 · 100
70-1010 × 7.56.1 MPa<1.4 MPa4120 · 100
70-1212 × 96.1 MPa<1.4 MPa5020 · 100
70-1616 × 126.1 MPa<1.4 MPa6520 · 100
45-1616 × 134.4 MPa<1.1 MPa10020 · 100
100-044 × 2.59.8 MPa<2.4 MPa1020 · 100
100-066 × 48.6 MPa<2.1 MPa1720 · 100

AS1 Soft Nylon Tubing — Imperial

Standard colors: Black, Milky-White.

Part No.O.D. × I.D. (mm)Burst Pressure 23°CMax. Op. Pressure 23°CMin. Bend Radius (mm)Standard Length (m)
70-1/83.18 × 2.366.3 MPa<1.5 MPa1220 · 100
70-3/164.76 × 3.486.6 MPa<1.6 MPa1820 · 100
70-1/46.35 × 4.577.0 MPa<1.7 MPa2220 · 100
70-5/167.94 × 5.906.3 MPa<1.5 MPa3120 · 100
70-3/89.53 × 6.996.6 MPa<1.6 MPa3620 · 100
70-1/212.70 × 9.566.0 MPa<1.4 MPa5220 · 100

AS2 High Pressure Resistant Nylon Tubing

Standard color: Milky-White. Complies with JIS B8381 Class 1 AH where marked.

Part No.O.D. × I.D. (mm)Burst Pressure 23°CMax. Op. Pressure 23°CMin. Bend Radius (mm)Standard Length (m)
170-044 × 2.517.6 MPa<4.4 MPa1020
170-066 × 415.2 MPa<3.7 MPa1720
125-088 × 610.7 MPa<2.6 MPa3320
125-1010 × 7.510.7 MPa<2.6 MPa4120
125-1212 × 910.7 MPa<2.6 MPa5020

AS4 Extremely Soft Nylon Tubing

Standard colors: Black, Milky-White (plus Red, Blue, Yellow, Green for 20 m rolls). Complies with JIS B8381 Type 2 AL.

Part No.O.D. × I.D. (mm)Burst Pressure 23°CMax. Op. Pressure 23°CMin. Bend Radius (mm)Standard Length (m)
50-044 × 2.55.0 MPa<1.2 MPa1020 · 100
50-066 × 44.4 MPa<1.0 MPa1720 · 100
35-088 × 63.1 MPa<0.78 MPa3320 · 100
35-1010 × 7.53.1 MPa<0.78 MPa4020 · 100
35-1212 × 93.1 MPa<0.78 MPa5020 · 100

AC1 Soft Nylon Control Tubing (Multi-Core)

Core tubing: AS1 100-06 (6×4). Standard length 100 m. For lengths exceeding standard, contact us.

Part No.CoresCore O.D. × I.D. (mm)Finished O.D. (mm)Burst 23°C (MPa)Max. Op. (MPa)Min. Bend (mm)Weight (g/m)
AC1-116 × 48.08.6<2.13050
AC1-226 × 415.08.6<2.130120
AC1-336 × 415.08.6<2.140130
AC1-446 × 417.08.6<2.140160
AC1-556 × 418.58.6<2.145180
AC1-666 × 420.08.6<2.145210
AC1-776 × 421.08.6<2.150210
AC1-886 × 422.08.6<2.150250
AC1-996 × 424.08.6<2.160270
AC1-10106 × 426.08.6<2.160310
AC1-12126 × 427.08.6<2.170360

AC2 Soft Nylon Control Tubing (Made-to-Order)

Core tubing: AS1 170-08 (8×6). Made-to-order — contact us for lead time and lengths.

Part No.CoresCore O.D. × I.D. (mm)Finished O.D. (mm)Burst 23°C (MPa)Max. Op. (MPa)Min. Bend (mm)Weight (g/m)
AC2-118 × 610.06.1<1.44070
AC2-228 × 619.06.1<1.440180
AC2-338 × 620.06.1<1.445200
AC2-558 × 624.56.1<1.465270
AC2-778 × 627.46.1<1.470310
AC2-10108 × 634.56.1<1.4100430

AT1 Soft Nylon Coil Tubing

Standard color: Orange. AT1-06-7.5 and AT1-09-7.5 are standard stock for Type C (horns on both ends, 100 mm each). Add "C" to the part number for Type C.

Part No.O.D.×I.D.×Length (mm)(mm)(m)Max. Op. Length L+S (m)Burst 23°C (MPa)Max. Op. Pressure (MPa)Coil L (mm)Coil S (m)Coil D (mm)
AT1-06-7.57.6×6×7.565.0<1.22305.795
AT1-06-107.6×6×10.085.0<1.23107.695
AT1-06-157.6×6×15.0125.0<1.246011.595
AT1-06-207.6×6×20.0165.0<1.262015.395
AT1-09-7.511×9×7.554.3<1.02904.7115
AT1-09-1011×9×10.074.3<1.03806.6115
AT1-09-1511×9×15.0104.3<1.05609.4115
AT1-09-2011×9×20.0144.3<1.076013.2115
AT1-12-7.515×12×7.544.8<1.12603.7155
AT1-12-1015×12×10.064.8<1.13505.6155
AT1-12-1515×12×15.084.8<1.15307.4155
AT1-12-2015×12×20.0124.8<1.170011.2155

AT4 Extremely Soft Nylon Coil Tubing

Standard color: Black. Can be cut to your preferred length.

Part No.O.D.×I.D.×Length (mm)(mm)(m)Max. Op. Length L+S (m)Burst 23°C (MPa)Max. Op. Pressure (MPa)Coil L (mm)Coil S (m)Coil D (mm)
AT4-044×2.5×1065.0<1.25405.530
AT4-066×4×1074.4<1.05406.545
AT4-088×6×1073.1<0.785106.567
AT4-1010×7.5×1073.1<0.784006.695

AT1 Coil Fittings

Dedicated connectors for terminating AT1 coil tubing — including the installation cone.

M — Female Connector

Part No.Tube O.D.×I.D. (mm)Threadφd (mm)Hex S1 / S2Weight (g)
M-6-PT1/47.6 × 6Rc 1/45.016 / 1438
M-9-PT3/811 × 9Rc 3/87.519 / 1971
M-12-PT1/215 × 12Rc 1/210.525 / 23123

O — Male Connector

Part No.Tube O.D.×I.D. (mm)Threadφd (mm)Hex S1 / S2Weight (g)
O-6-PT1/87.6 × 6R 1/85.012 / 1433
O-6-PT1/47.6 × 6R 1/45.014 / 1438
O-9-PT3/811 × 9R 3/87.517 / 1977
O-12-PT1/215 × 12R 1/210.522 / 23124

FM — Rotary Female Connector

Part No.Tube O.D.×I.D. (mm)Threadφd (mm)Hex S1 / S2Weight (g)
FM-6-PT1/47.6 × 6Rc 1/44.616 / 14 / 1449
FM-9-PT3/811 × 9Rc 3/87.019 / 17 / 1991
FM-12-PT1/215 × 12Rc 1/210.025 / 22 / 23161

FO — Rotary Male Connector

Part No.Tube O.D.×I.D. (mm)Threadφd (mm)Hex S1 / S2Weight (g)
FO-6-PT1/47.6 × 6R 1/44.614 / 14 / 1444
FO-9-PT3/811 × 9R 3/87.017 / 17 / 1986
FO-12-PT1/215 × 12R 1/210.022 / 22 / 23143

Cone (Installation Tool)

Install AT1 coil fittings by tightening the union nut by hand, then using a spanner to tighten to the end.

Part No.Applicable Tube O.D. (mm)
S-06T7.6
S-09T11.0
S-12T15.0
