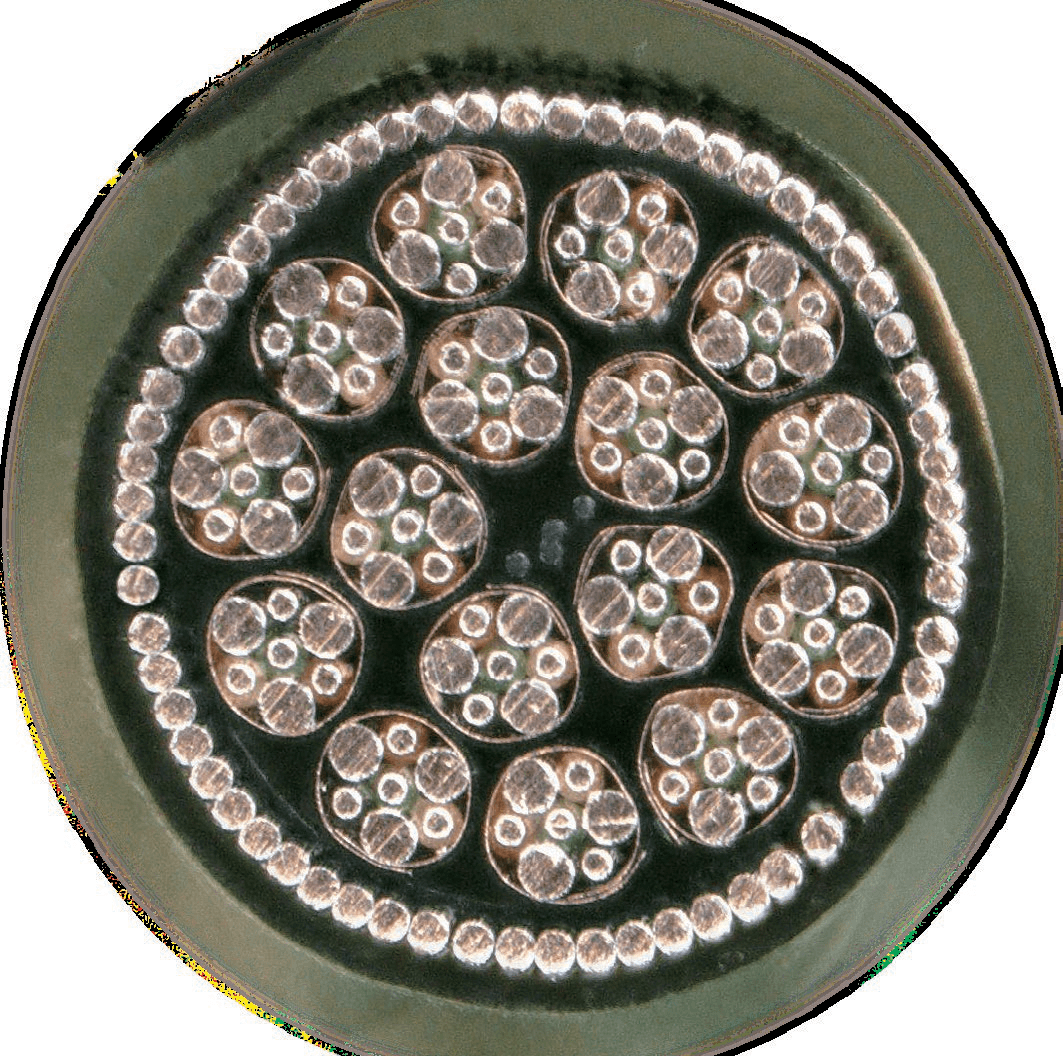

MCT Multi-Channel Transmission Cable

64 Channels in 1 mm — Patented Cable for Intracorporeal Ultrasound Probes

The EAF-03 Multi-Channel Transmission Cable and Assembly (MCT) is Junkosha's patented replacement for coaxial and FPC subassemblies in intracorporeal ultrasound probes. Its multi-channel structure packs 64 channels into a 1 mm outer diameter — 32-43% thinner than an equivalent coaxial bundle — while maintaining coax-grade signal quality, superior flexibility, and a simplified, process-friendly structure that cuts device assembly man-hours.

תכונות עיקריות

• ✓Up to 43% smaller outer diameter than an equivalent coaxial bundle
• ✓64 channels in a 1 mm outer diameter (AWG#50)
• ✓Signal quality equivalent to coaxial cable — drop-in for existing designs
• ✓Superior flexibility for catheter and endoscope delivery systems
• ✓Simplified, centralized structure reduces assembly man-hours and improves yields
• ✓Integrated pre-soldered termination available (patent pending)
• ✓Custom subassembly and value-add services from Junkosha
